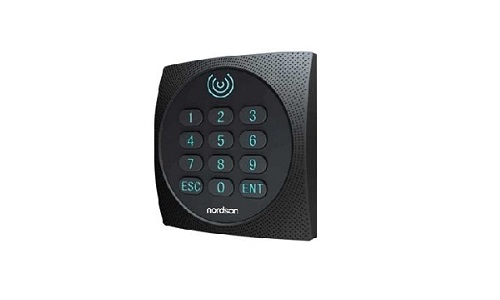

NK-RF200 Proximity Access Card Reader
Camera Description : Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply. When external Power is used, make sure sharing the power with Controller Box or using the same GND. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires.
• 125KHz Proximity /13.56MHz mifare Card Reader or PIN
• Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
• Output format
• Card: 26/34bit Wiegand (default)
• PIN: 8 bit for PIN output format
• External LED Control
• External Buzzer Control
• Indoor / Outdoor Operation
• Reverse Polarity Protection
Price |
|
Brand Name |
Nordson |
Model Name |
NK-RF200EM |
Contact No |
01911772398 |
Product Importer |
|
Model Year |
03-01-2015 |
LED Indicator |
|
Operating Humidity |
10% to 90% relative humidity non-condensing |
Sensing area |
13.6mm x 16.2mm |
Card Output Format |
26bit Wiegand (default) |
Color |
Dark Grey |
Size |
|
Ambient Temperature |
-20° to +65°C |
Power Supply |
DC2V |
Reading Range |
Up to 10CM |
Output Format |
Wiegand 26/34,RS485/232 |
Delivery Charge |
|
Installation Charge |
Yes |
Current |
DC 6-14V / Max.70mA |
PIN Output Format |
8 bit |
Quantity |
1ps - 64ps |
HD |
|
Comunication Distance |
WG≤100M,RS485≤1200M |
Door detection point |
Yes |
Local Recording |
Latent fingerprints will be deleted with newly added fingerprint. |
