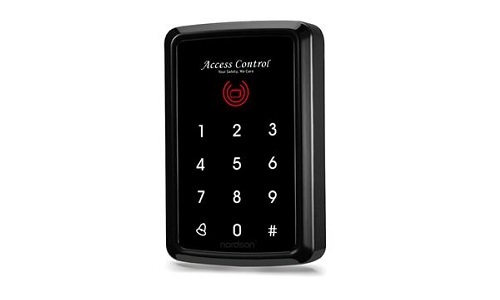

NT-T09 Touch-Screen Single door Access Control
Camera Description : Support 2500 users, 25000 records and alarm events. 122*32mm LED display screen，backlighting, menu interface of dual languag (Chinese and Engish), name and job number are displayed. Integration of single / double door control, standard wiegand 26 bits interface. Be able to set pharameters under the conditon of offline completely. Public and personal message release function.
• Support 2500 users, 25000 records and alarm events.
• 122*32mm LED display screen，backlighting, menu interface of dual language(Chinese and Engish), name and job number are displayed.
• Integration of single / double door control, standard wiegand 26 bits interface.
• Be able to set pharameters under the conditon of offline completely.
• Public and personal message release function.
• RS485 communication, connect with management software of 255 sets.
• 16 alarm clock time can be set and support working day selection, remote control of any door.
• 32 time zones, 8 types of holiday, card validity, card password.
Price |
|
Brand Name |
Access Control |
Model Name |
NT-T09 |
Contact No |
01911772398 |
Product Importer |
|
Model Year |
03-01-2015 |
LED Indicator |
|
Relative humidity |
20%—80% |
Sensing area |
13.6mm x 16.2mm |
Card Output Format |
26bit Wiegand (default) |
Color |
Dark Grey |
Dimensions |
|
Ambient Temperature |
-10℃—70℃ |
Power Supply |
DC 12V±10% |
Reading Range |
1－15CM |
Opening mode |
card, card+password, password, support intimidating password and super password. |
Delivery Charge |
|
Installation Charge |
Yes |
Current |
< 100mA |
Storage |
1000 users |
Quantity |
1ps - 64ps |
HD |
|
Comunication Distance |
WG≤100M,RS485≤1200M |
Door detection point |
Yes |
Local Recording |
Latent fingerprints will be deleted with newly added fingerprint. |
