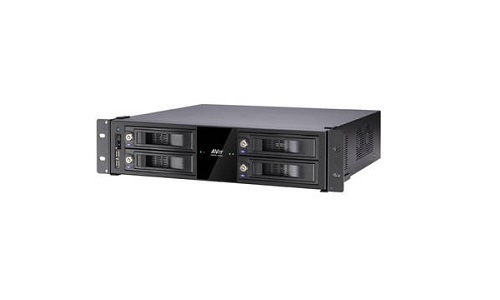

AVer E5016H 16-Channel Hybrid DVR
Camera Description : Directly connect both analog and IP cameras to the E5016H 16-Channel Hybrid DVR from Aver. Whether you're looking to gradually migrate to an IP system from an analog system or want to simply add IP cameras to an existing analog environment, this hybrid DVR has robust features that enable remote video viewing and management from up to 16 cameras. Moreover, this hybrid DVR has 4 removable HDD trays that can support up to 4 SATA HDDs as well as one external e-SATA HDD or RAID.
• Up to 16 Analog/IP Cameras Supported
• Integrates with POS and External Systems
• 5MP per Channel IP Recording Resolution
• H.264, MPEG-4, MJPEG Compression
• HDMI, VGA and BNC Outputs
• 4 Removable HDD Trays with RAID Support
• 4 NO/NC Alarm Relays
• Free iViewer Mobile App for Android/iOS
• ONVIF Compliant
Price |
|
Brand Name |
AVer |
Model Name |
AVer E5016H |
Contact No |
01911772398 |
Product Importer |
|
Model Year |
03-01-2015 |
Operating Temperature |
|
Signal System |
NTSC / PAL |
Channels |
16 |
Recording Resolution |
960H |
Recording Frame Rate |
NTSC: Global 240 / 30 fps per channel, PAL: Global 200 / 25 fps per channel |
Display Resolution |
|
Display Frame Rate |
30 fps |
Video Streaming |
Main Stream: WD1 / 4CIF / 2CIF / CIF / QCIF, Sub Stream: CIF / QCIF |
Video Compression |
H.264 |
Storage |
capacity: 4 x SATA HDDs (4 x removable HDD trays) |
Video Inputs |
|
Video Outputs |
1 x HD output, 1 x BNC (composite), 1 x SPOT |
Display Modes |
1,4, Sequence |
Switching Method |
IE, MyDVR, CMS, SwannView |
PTZ Control |
Configurable presets, patrols, and patterns; 60 PTZ protocols supported |
Connections |
|
Network Interface |
1 x RJ45 10/100 M Base-T Ethernet, 1 x RS-485 half-duplex interface |
Power Requirements |
19 VDC, 250 W power adapter |
Dimensions |
16.9 x 4.1 x 16.1 (430 x 105 x 410 mm) |
Weight |
18.1 lb (8.2 kg) |
