Digital Watchdog VMAX 960H CORE 4-Channel DVR

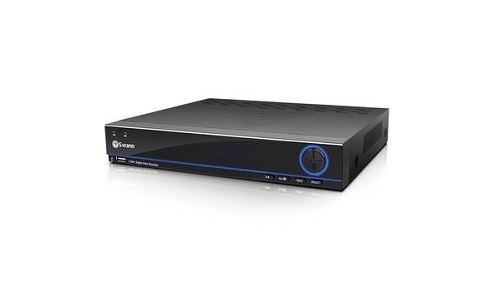

Camera Description : The Swann DVR8-3200 8-Channel 960H Digital Video Recorder offers wider, clearer DVD-quality videos for your home or business. It comes with a pre-installed 1TB HDD and features H.264 recording technology, a HDMI output, and Web and smartphone remote viewing. Recorded events can be transferred to a USB flash drive for viewing later.
• 960H DVD-Quality Recording
• HDMI Connect to HDTV/LCD/PLASMA TVs
• Easy USB Backup
• 30-Day Continuous Recording
• 1TB HDD
• SwannLink Peer to Peer Connectivity
• Web & Smartphone Remote Viewing
• Easy DIY Installation
Price |
|
Brand Name |
Swann |
Model Name |
Swann DVR8-3200 |
Contact No |
01911772398 |
Product Importer |
|
Model Year |
03-01-2015 |
Operating Temperature |
|
Signal System |
NTSC / PAL |
Channels |
4 |
Recording Resolution |
960H |
Recording Frame Rate |
NTSC: Global 240 / 30 fps per channel, PAL: Global 200 / 25 fps per channel |
Display Resolution |
|
Display Frame Rate |
30 fps |
Video Streaming |
Main Stream: WD1 / 4CIF / 2CIF / CIF / QCIF, Sub Stream: CIF / QCIF |
Video Compression |
H.264 |
Storage |
Hard Drive Interface: 1 TB SATA2 HDD (installed), Capacity: Up to 2 TB SATA2 HDD |
Video Inputs |
|
Video Outputs |
1 x HD output, 1 x BNC (composite), 1 x SPOT |
Display Modes |
1,4, Sequence |
Switching Method |
IE, MyDVR, CMS, SwannView |
PTZ Control |
Configurable presets, patrols, and patterns; 60 PTZ protocols supported |
Connections |
|
Network Interface |
1 x RJ45 10/100 M Base-T Ethernet, 1 x RS-485 half-duplex interface |
Power Requirements |
12 VDC power adapter |
Dimensions |
10.23 x 9.00 x 1.60" (259.84 x 228.60 x 40.64 mm) |
Weight |
3.1 lb (1.4 kg) |
