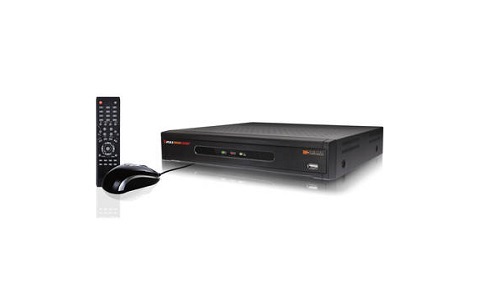

Digital Watchdog VMAX 960H CORE 4-Channel DVR
Camera Description : Full pentaplex operation, multiple alarm inputs, 960H real-time recording resolution, and expandable storage capacity up to 4TB, make the VMAX 960H CORE 4-Channel DVR with 1TB HDD from Digital Watchdog, a powerful recording and storage solution for a one to four camera surveillance system.
• 4-Channel 960H Real-Time Recording DVR
• Full Pentaplex Operation
• H.264 Video Compression
• 1 x Audio Input / 1 x Audio Output
• 4 Sensor Unit Inputs/1 Output Supported
• Event Notifications w/Snapshot via Email
• Web-Client Based w/ Multi-User Access
• Central Management Software Supported
• Expandable Storage Capacity up to 4TB
• Android/iOS/Kindle Fire Mobile Supported
Price |
|
Brand Name |
Digital Watchdog |
Model Name |
DIDWVC41T |
Contact No |
01911772398 |
Product Importer |
|
Model Year |
03-01-2015 |
Operating Temperature |
|
Signal System |
NTSC / PAL |
Channels |
4 |
Recording Resolution |
960H |
Recording Frame Rate |
NTSC: Global 240 / 30 fps per channel, PAL: Global 200 / 25 fps per channel |
Display Resolution |
|
Display Frame Rate |
30 fps |
Video Streaming |
Main Stream: WD1 / 4CIF / 2CIF / CIF / QCIF, Sub Stream: CIF / QCIF |
Video Compression |
H.264 |
Storage |
HDD Interface: 1 HDD, Internal Storage: Maximum- 4 TB |
Video Inputs |
|
Video Outputs |
1 x HD output, 1 x BNC (composite), 1 x SPOT |
Display Modes |
1,4, Sequence |
Switching Method |
IE, MyDVR, CMS, SwannView |
PTZ Control |
Configurable presets, patrols, and patterns; 60 PTZ protocols supported |
Connections |
|
Network Interface |
1 x RJ45 10/100 M Base-T Ethernet, 1 x RS-485 half-duplex interface |
Power Requirements |
12 VDC power adapter |
Dimensions |
14.2 x 14.3 x 2.6" (360.7 x 363.2 x 66.0 mm) |
Weight |
8.4 lb (3.8 kg) |
