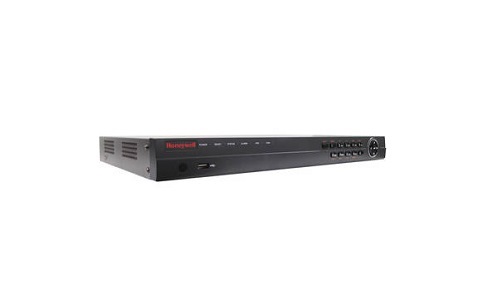

Honeywell/Sperian 8-Channel Performance DVR
Camera Description : Capture video in 960H real-time recording resolution with Honeywell's HRGX81 H.264 8-Channel Performance Series DVR with 1TB HDD, an 8-channel DVR featuring space-saving H.264 compression, dual video streaming support, eight independently configurable channels, and more. The HRGX81 DVR offers multiple recording modes, such as Continuous and Event recording; Continuous recording mode can be useful in environments where uninterrupted video capture is critical. Continuous recording takes up a lot of storage space, even with the DVR's H.264 space-saving video compression format that reduces media file sizes to help conserve bandwidth.
• 1TB DVR with 960H Real-Time Recording
• H.264 Video Compression
• Dual Streaming Supported
• Manual/Continuous/Event Recording
• HDMI/VGA/BNC Video Outputs
• Expandable Storage up to 2 SATA HDD
• 4-Zone Privacy Masking
• 4 Audio Inputs/1 Audio Output
• 8 Alarm Inputs/4 Alarm Relay Outputs
• PTZ Cameras and Controls Supported
Price |
|
Brand Name |
Honeywell |
Model Name |
HRGX81 |
Contact No |
01911772398 |
Product Importer |
|
Model Year |
03-01-2015 |
Operating Temperature |
|
Signal System |
NTSC / PAL |
Channels |
8 |
Recording Resolution |
NTSC: 960H (960 x 480), CIF (352 x 240), PAL: 960H (960 x 576), CIF (352 x 288) |
Recording Frame Rate |
NTSC: 30 fps/channel, PAL: 25 fps/channel |
Display Resolution |
|
Display Frame Rate |
NTSC: 30 fps per channel, PAL: 25 fps per channel |
Video Streaming |
Main Stream: WD1 / 4CIF / 2CIF / CIF / QCIF, Sub Stream: CIF / QCIF |
Video Compression |
H.264 |
Storage |
1TB HDD |
Video Inputs |
|
Video Outputs |
1 x HDMI 1 x VGA 1 x Main BNC (CVBS) |
Display Modes |
1,4, Sequence |
Switching Method |
Front panel, IR remote control, remotely via Internet and mobile app |
PTZ Control |
Configurable presets, patrols, and patterns; 60 PTZ protocols supported |
Connections |
|
Network Interface |
1 x RJ45 10/100 M Base-T Ethernet, 1 x RS-485 half-duplex interface |
Power Requirements |
12 VDC power adapter |
Dimensions |
17.3 × 11.1 × 1.75" (440 × 282 × 45 mm) |
Weight |
8.8 lb (4 kg) |
