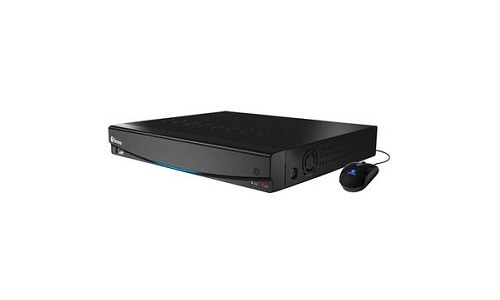

Swann DVR8-3425 8-Channel 960H DVR
Camera Description : Swann's DVR8-3425 8-Channel 960H DVR with 500GB HDD is an 8-channel DVR that allows you to record in the 960H recording resolution and remotely view, playback, or backup video from up to eight cameras. The DVR provides 30% wider resolution than comparable D1 DVRs as well as a 1080p display resolution. With multiple recording modes like continuous, scheduled and motion-triggered, you can configure recording parameters to accommodate your unique surveillance needs as well as to conserve space on the DVR's 500GB preinstalled hard drive.
• 960H Widescreen Recording Resolution
• Preinstalled 500GB HDD in DVR
• Supports up to 8 Cameras
• Manual, Schedule and Motion Recording
• H.264 Video Compression
• VGA and HDMI Outputs
• Remotely View Video Via Android/iOS App
Price |
|
Brand Name |
Swann |
Model Name |
DVR8-3425 |
Contact No |
01911772398 |
Product Importer |
|
Model Year |
03-01-2015 |
Operating Temperature |
|
Signal System |
NTSC / PAL |
Channels |
8 |
Recording Resolution |
960H |
Recording Frame Rate |
NTSC: Global 240 / 30 fps per channel, PAL: Global 200 / 25 fps per channel |
Display Resolution |
|
Display Frame Rate |
NTSC: 30 fps per channel, PAL: 25 fps per channel |
Video Streaming |
Main Stream: WD1 / 4CIF / 2CIF / CIF / QCIF, Sub Stream: CIF / QCIF |
Video Compression |
H.264 |
Storage |
Expandable up to 3TB SATA HDD |
Video Inputs |
|
Video Outputs |
VGA, HDMI |
Display Modes |
1,4, Sequence |
Switching Method |
IE, MyDVR, CMS, SwannView |
PTZ Control |
Configurable presets, patrols, and patterns; 60 PTZ protocols supported |
Connections |
|
Network Interface |
1 x RJ45 10/100 M Base-T Ethernet, 1 x RS-485 half-duplex interface |
Power Requirements |
12 VDC power adapter |
Dimensions |
10.23 x 9.00 x 1.60" (259.84 x 228.60 x 40.64 mm) |
Weight |
Not specified by manufacturer |
