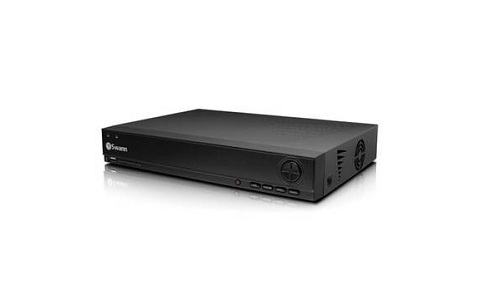

Swann DVR4-1000 4-Channel 500GB HDD DVR
Camera Description : The DVR4-1000 4-Channel 500GB HDD DVR from Swann is designed to work with 960H widescreen-format surveillance cameras, so footage is recorded and displayed in the correct aspect ratio which eliminates stretching and distortion to the image. Each channel captures video in up to 960x480 resolution, and the HDMI output displays in full 1080p. A VGA video-out port can be used for a secondary monitor, and can be set for simultaneous output with the HDMI port. The DVR comes with a 500GB HDD installed, with the capacity to upgrade or add drives later, up to two 2TB.
• 4 Channel with 500GB HDD
• Up to 960x480 Recording Resolution
• HDMI and VGA Simultaneous Video-Out
• Dual Media Streams, H.264 Compression
• Four Audio-In and One Audio-Out Ports
• Continuous, Motion, Scheduled Recording
• Internet and Mobile App Remote Access
• Multiple Users with Three Access Levels
• Supports PTZ Camera Control
Price |
|
Brand Name |
Swann |
Model Name |
SWDVR41000HU |
Contact No |
01911772398 |
Product Importer |
|
Model Year |
03-01-2015 |
Operating System |
|
Signal System |
NTSC, PAL |
Channels |
4 |
Recording Resolution |
NTSC: 960H (960 x 480), CIF (352 x 240), PAL: 960H (960 x 576), CIF (352 x 288) |
Recording Frame Rate |
NTSC: 30 fps/channel, PAL: 25 fps/channel |
Display Resolution |
|
Display Frame Rate |
NTSC: 30 fps per channel, PAL: 25 fps per channel |
Video Streaming |
- |
Video Compression |
H.264 |
Storage |
500 GB |
Video Inputs |
|
Video Outputs |
1 x HDMI, 1 x VGA |
Display Modes |
1,4, Sequence |
Switching Method |
Front panel, IR remote control, remotely via Internet and mobile app |
PTZ Control |
1 x RS-485 port, Protocols: PELCO-P & PELCO-D |
Connections |
|
Network Interface |
1 x RJ-45 10/100 Ethernet port |
Power Requirements |
12 VDC power adapter |
Dimensions |
11.8 x 8.5 x 2.0" (30.0 x 21.5 x 5.0 cm) |
Weight |
4.4 lb (2 kg) |
