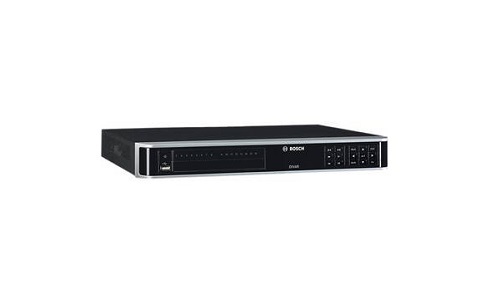

Bosch DIVAR-3000 8-Channel Digital Video Recorder
Camera Description : The DIVAR-3000 8-Channel Digital Video Recorder from Bosch has a 1TB hard-disk drive and is used for analog camera video management. It employs 960H high-resolution video recording, H.264 video compression, and G.711 audio compression to reduce bandwidth and storage requirements while delivering good image and audio quality.
• 960H/RT Technology
• Free Viewing Apps
• H.264 Compression
• Web-Based Interface
• HDMI/VGA/CVBS Outputs
• Audio & PTZ Control Functionality
Price |
|
Brand Name |
Bosch |
Model Name |
Bosch DIVAR-3000 |
Contact No |
01911772398 |
Product Importer |
|
Model Year |
03-01-2015 |
Operating Temperature |
|
Signal System |
NTSC / PAL |
Channels |
8 |
Recording Resolution |
960H |
Recording Frame Rate |
NTSC: Global 240 / 30 fps per channel, PAL: Global 200 / 25 fps per channel |
Display Resolution |
|
Display Frame Rate |
30 fps |
Video Streaming |
Main Stream: WD1 / 4CIF / 2CIF / CIF / QCIF, Sub Stream: CIF / QCIF |
Video Compression |
H.264 |
Storage |
Hard Drive Interface: 1 TB SATA2 HDD (installed), Capacity: Up to 2 TB SATA2 HDD |
Video Inputs |
|
Video Outputs |
1 x HD output, 1 x BNC (composite), 1 x SPOT |
Display Modes |
1,4, Sequence |
Switching Method |
IE, MyDVR, CMS, SwannView |
PTZ Control |
Configurable presets, patrols, and patterns; 60 PTZ protocols supported |
Connections |
|
Network Interface |
1 x RJ45 10/100 M Base-T Ethernet, 1 x RS-485 half-duplex interface |
Power Requirements |
+12 VDC |
Dimensions |
14.8 x 11.4 x 2.0" (375.0 x 290.0 x 50.0 mm), excluding cabling and feet 0.1" (5.0 mm) |
Weight |
Approximately 5.51 lb (2.50 kg), excluding HDD |
